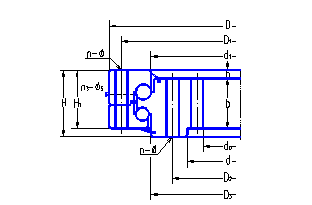

双排推力角接触球转盘轴承

点击量：1343次 日期：2023/1/15 来源：Jiayu Bearing


	轴承型号Designations		外形尺寸 Boundary dimensions			安装孔尺寸 Bolt hole diameter				结构尺寸 Structure dimensions						齿轮参数 Gear parameters							额定负荷 Basic load ratings	质量 Mass
无齿式	外齿式	内齿式	D	d	H	D1	D2	n	φ	D3	d1	H1	h	n3	φ3	m	Da	Z	da	Z	b	x	Coa
non-gear type	external gear type	internal gear type	mm			mm			mm	(D3')	(d1')				mm		mm		mm		mm		10⁴ N	kg
020·25·500·**	021·25·500·**	023·25·500·**	616	384	106	580	420	20	18	523	517	96	26	4	M10×1	5	645	126	355	72	60	+0.5	121	100
	022·25·500·**	024·25·500·**	616	384	106	580	420	20	18	(483)	(477)	96	26	4	M10×1	6	648	105	348	59	60	+0.5	121	100
020·25·560·**	021·25·560·**	023·25·560·**	676	444	106	640	480	20	18	583	577	96	26	4	M10×1	5	705	138	415	84	60	+0.5	134	115
	022·25·560·**	024·25·560·**	676	444	106	640	480	20	18	(543)	(537)	96	26	4	M10×1	6	708	115	408	69	60	+0.5	134	115
020·25·630·**	021·25·630·**	023·25·630·**	746	514	106	710	550	24	18	653	647	96	26	4	M10×1	6	792	129	480	81	60	+0.5	153	130
	022·25·630·**	024·25·630·**	746	514	106	710	550	24	18	(613)	(607)	96	26	4	M10×1	8	792	96	472	60	60	+0.5	153	130
020·25·710·**	021·25·710·**	023·25·710·**	826	594	106	790	630	24	18	733	727	96	26	4	M10×1	6	864	141	558	94	60	+0.5	173	140
	022·25·710·**	024·25·710·**	826	594	106	790	630	24	18	(693)	(687)	96	26	4	M10×1	8	864	105	552	70	60	+0.5	173	140

020·30·800·**	021·30·800·**	023·30·800·**	942	658	124	898	702	30	22	828	822	114	29	6	M10×1	8	984	120	616	78	80	+0.5	230	200
	022·30·800·**	024·30·800·**	942	658	124	898	702	30	22	(778)	(771)	114	29	6	M10×1	10	990	96	610	62	80	+0.5	230	200
020·30·900·**	021·30·900·**	023·30·900·**	1042	758	124	998	802	30	22	928	922	114	29	6	M10×1	8	1088	133	712	90	80	+0.5	258	250
	022·30·900·**	024·30·900·**	1042	758	124	998	802	30	22	(878)	(871)	114	29	6	M10×1	10	1090	106	710	72	80	+0.5	258	250
020·30·1000·**	021·30·1000·**	023·30·1000·**	1142	858	124	1098	902	36	22	1028	1022	114	29	6	M10×1	10	1200	117	810	82	80	+0.5	286	300
	022·30·1000·**	024·30·1000·**	1142	858	124	1098	902	36	22	(978)	(971)	114	29	6	M10×1	12	1200	97	792	67	80	+0.5	286	300
020·30·1120·**	021·30·1120·**	023·30·1120·**	1262	978	124	1218	1022	36	22	1148	1142	114	29	6	M10×1	10	1320	129	920	93	80	+0.5	321	340
	022·30·1120·**	024·30·1120·**	1262	978	124	1218	1022	36	22	(1098)	(1091)	114	29	6	M10×1	12	1320	107	912	77	80	+0.5	321	340

020·40·1250·**	021·40·1250·**	023·40·1250·**	1426	1074	160	1374	1126	40	26	1286	1282	150	39	6	M10×1	12	1500	122	1008	85	90	+0.5	482	580
	022·40·1250·**	024·40·1250·**	1426	1074	160	1374	1126	40	26	(1218)	(1214)	150	39	6	M10×1	14	1498	104	1008	73	90	+0.5	482	580
020·40·1400·**	021·40·1400·**	023·40·1400·**	1576	1224	160	1524	1272	40	26	1436	1432	150	39	6	M10×1	12	1644	134	1152	97	90	+0.5	543	650
	022·40·1400·**	024·40·1400·**	1576	1224	160	1524	1272	40	26	(1368)	(1364)	150	39	6	M10×1	14	1652	115	1148	83	90	+0.5	543	650
020·40·1600·**	021·40·1600·**	023·40·1600·**	1776	1424	160	1724	1476	45	26	1636	1632	150	39	8	M10×1	14	1848	129	1344	97	90	+0.5	620	750
	022·40·1600·**	024·40·1600·**	1776	1424	160	1724	1476	45	26	(1568)	(1564)	150	39	8	M10×1	16	1856	113	1344	85	90	+0.5	620	750
020·40·1800·**	021·40·1800·**	023·40·1800·**	1976	1624	160	1924	1676	45	26	1836	1832	150	39	8	M10×1	14	2058	144	1540	111	90	+0.5	692	820
	022·40·1800·**	024·40·1800·**	1976	1624	160	1924	1676	45	26	(1768)	(1764)	150	39	8	M10×1	16	2064	126	1536	97	90	+0.5	692	820

020·50·2000·**	021·50·2000·**	023·50·2000·**	2215	1785	190	2149	1851	48	33	2038	2032	178	47	8	M10×1	16	2304	141	1696	107	120	+0.5	987	1150
	022·50·2000·**	024·50·2000·**	2215	1785	190	2149	1851	48	33	(1968)	(1962)	178	47	8	M10×1	18	2304	125	1692	95	120	+0.5	987	1150
020·50·2240·**	021·50·2240·**	023·50·2240·**	2455	2025	190	2389	2091	48	33	2278	2272	178	47	8	M10×1	16	2544	156	1936	122	120	+0.5	1110	1500
	022·50·2240·**	024·50·2240·**	2455	2025	190	2389	2091	48	33	(2208)	(2202)	178	47	8	M10×1	18	2556	139	1926	108	120	+0.5	1110	1500
